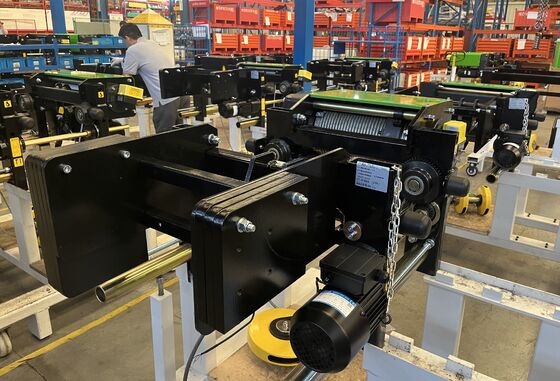

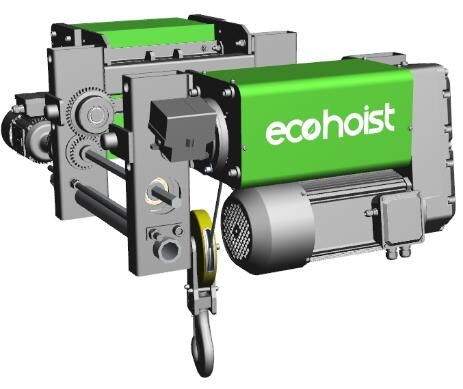

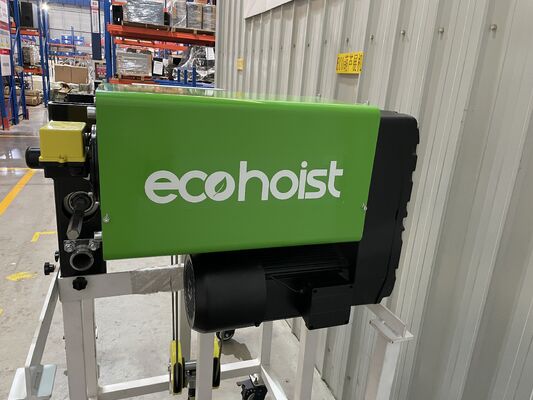

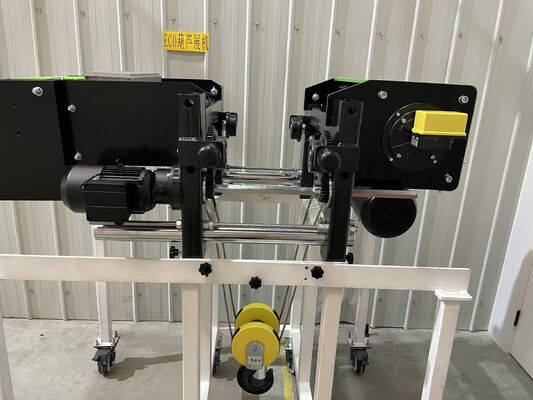

Electric Wire Rope Hoist European Type With Variable Lifting Speed Travelling Speed 3.2T 5T 10T 16T 20T

Electric Wire Rope Hoist European Type With Variable Lifting Speed Travelling Speed 3.2T 5T 10T 16T 20T

ECO  electric wire rope hoist is designed for stable, high-intensity operations in industrial environments, it meets the highest EU quality standards. This hoist can lift and move loads up to 3200-20000 kg, with a lifting height of up to 6-18 meters, ensuring smooth and precise lifting and an exceptionally long service life.

This model is equipped with a variable frequency control system for lifting and travel, enabling precise load positioning, gentle handling of fragile materials, and ensuring a long service life. Suitable for heavy-duty production, it can withstand up to 240 starts per hour and operates in M5 mode (ISO 4301), significantly outperforming basic series hoists (e.g., the CD/MD model in M3 mode).

Its compact design and reduced structural height allow for installation in rooms with limited space.

• Frequency control of lifting and travel ensures smooth, jerky movement, precise load positioning, and reduced wear on components.
• 240 starts per hour / M5 operating mode - This crane is suitable for continuous operation and can withstand frequent cycles.

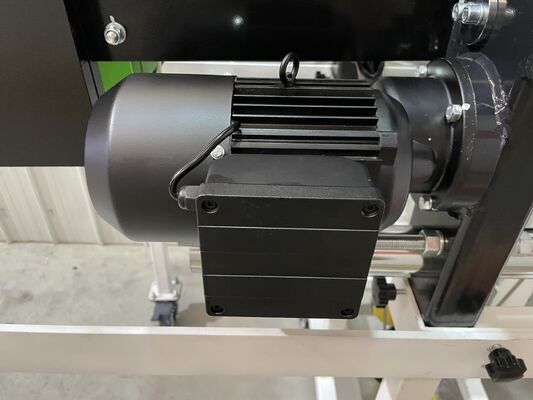

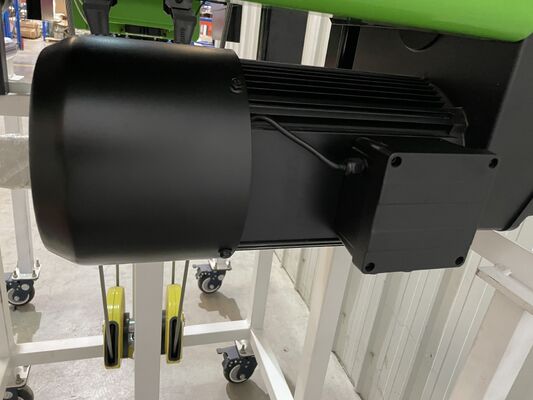

• A powerful lifting and moving drive equipped with an electromagnetic brake ensures safe operation.
• Lower building height allows for construction in spaces with limited height.
• An electronic load limiter prevents overload, improving safety and extending the crane's service life.
• Improved dust and moisture resistance rating - IP55.
• Rugged rollers are made of Q345 steel conforming to FEM (Federation of European Material Handling and Warehousing Machinery Manufacturers) standards, capable of withstanding long hours and heavy-duty cycles.
• High-strength galvanized steel wire rope ensures a longer service life.
• Reliable limit switches help prevent operational errors.
• The hook suspension device with safety lock is manufactured according to DIN standards.
• The high-quality rope guide is designed with a lifespan equal to that of the crane itself.
